产品名称 : PSD1 SERIES
产品描述

HIGH CURRENT TRANSIENT VOLTAGE SUPPRESSOR
STAND-OFF VOLTAGE - 30 TO 76 Volts

FEATURES

  • 1KA, 8/20 μs surge capability
  • Low clamping voltage under surge
  • Bidirectional TVS
  • Surface mount DO-214AB package
  • Halogen-Free
  • RoHS compliant
  • Typical maximum temperature coefficient ΔVBR=0.1%xVBR@25 ºCxΔT
  • Glass passivated junction
  • Low inductance
  • Plastic package has Underwriters Laboratory Flammability 94V-O
  • High temperature soldering: 260°C/40 seconds at terminals
  • Matte Tin Lead-free plated
  • Meet MSL level 1, Per J-STD-020

MECHANICAL DATA

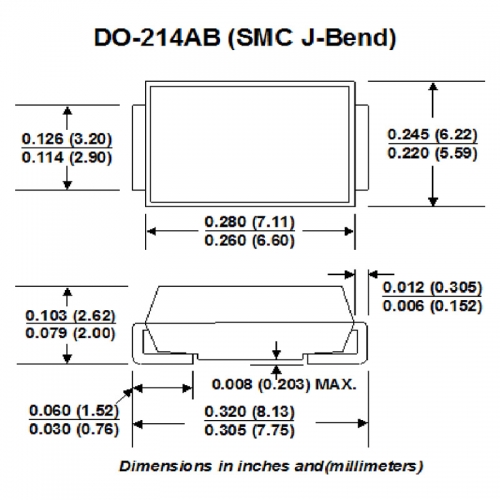

Case: JEDEC DO214AB. Molded plastic over glass passivated junction

Terminal: Solderable per MIL-STD-750, Method 2026

Standard Packaging: 16mm tape (EIA STD RS-481)

Weight: 0.0084~0.0086 ounce, 0.238091~0.243883 gram

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25℃ ambient temperature unless otherwise specified.
RATINGSYMBOLVALUEUNITS

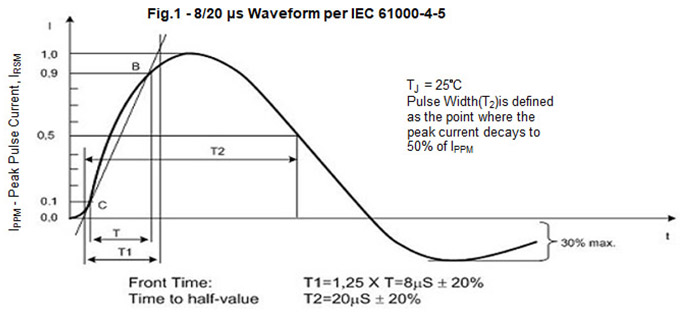

Peak Current Rating per 8/20 μs IEC 61000-4-5 (Fig 1) IPPM 1000 Amps

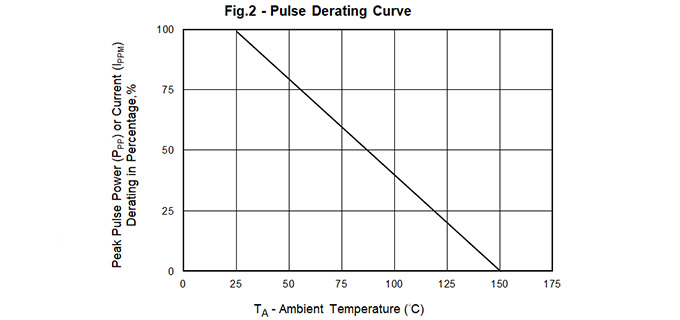

Operating junction and Storage Temperature Range (Fig 2) TJ , TSTG -55 to +150
Note:Non-repetitive current pulse, per Fig. 1 and derated above TA = 25℃  per Fig. 2 .
PART NUMBERDEVICE MARKING CODEREVERSE STAND- OFF VOLTAGE VRWM(V)BREAKDOWN
VOLTAGE
VBR(V) @IT
TEST CURRENT IT (mA)REVERSE LEAKAGE @ VRWM IR (μA)PEAK PULSE CURRENT (1) @Ipp(A)
(8/20μs per
IEC 61000-4-5)
MAXIMUN
CLAMPING VOLTAGE
@ 8/20 μs
MINMAX
PSD1-030C 1K30C 30.0 33.30 36.80 1 1 1000 39.0
PSD1-033C 1K33C 33.0 36.70 40.60 1 1 1000 42.9
PSD1-036C 1K36C 36.0 40.00 44.20 1 1 1000 46.8
PSD1-040C 1K40C 40.0 44.40 49.10 1 1 1000 52.0
PSD1-043C 1K43C 43.0 47.80 52.80 1 1 1000 55.9
PSD1-045C 1K45C 45.0 50.00 55.30 1 1 1000 58.5
PSD1-048C 1K48C 48.0 53.30 58.90 1 1 1000 62.4
PSD1-051C 1K51C 51.0 56.70 62.70 1 1 1000 66.3
PSD1-054C 1K54C 54.0 60.00 66.30 1 1 1000 70.2
PSD1-058C 1K58C 58.0 64.40 71.20 1 1 1000 75.4
PSC1-060C 1K60C 60.0 66.70 73.70 1 1 1000 78.0
PSD1-064C 1K64C 64.0 71.10 78.60 1 1 1000 83.2
PSD1-066C 1K66C 66.0 72.00 80.00 1 1 1000 85.8
PSD1-070C 1K70C 70.0 77.80 86.00 1 1 1000 91.0
PSD1-076C 1K76C 76.0 85.00 95.00 1 1 1000 98.8
• Note:
1. VC measured at the time coincident with the peak surge current

RATINGS AND CHARACTERISTIC CURVES

Ratings and Characteristic Curves(TA=25℃ unless otherwise noted)

HIGH CURRENT TRANSIENT VOLTAGE SUPPRESSOR

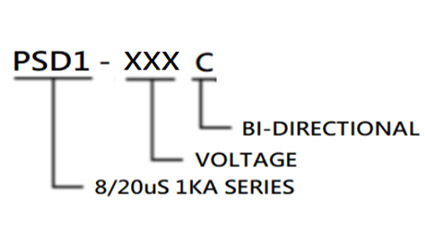

Part Numbering System

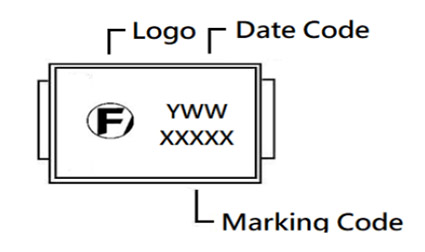

Part Marking System

Packaging

Part numberComponent PackageQuantityPackaging OptionPackaging Specification
PSD1-XXXCA DO-214AB 3000 Tape & Reel - 16mm/13" tape EIA STD RS-481
PSD1-XXXCA DO-214AB 500 Tape & Reel - 16mm/7" tape EIA STD RS-481
