PSD1.5 SERIES
FEATURES
- 1.5KA, 8/20 μs surge capability
- Low clamping voltage under surge
- Bidirectional TVS
- Surface mount DO-214AB package
- Halogen-Free
- RoHS compliant
- Typical maximum temperature coefficient ΔVBR=0.1%xVBR@25 ºCxΔT
- Glass passivated junction
- Low inductance
- Plastic package has Underwriters Laboratory Flammability 94V-O
- High temperature soldering: 260°C/40 seconds at terminals
- Matte Tin Lead-free plated
- Meet MSL level 1, Per J-STD-020
MECHANICAL DATA

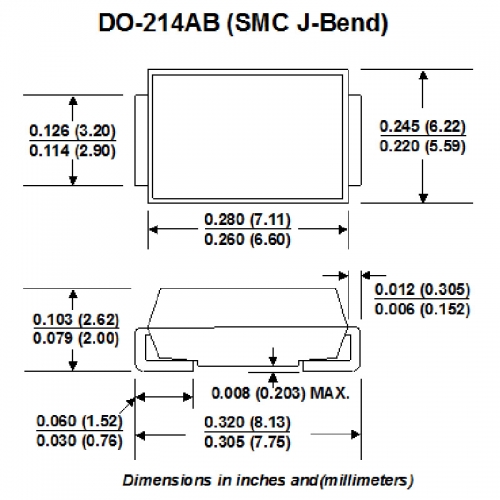

Case: JEDEC DO214AB. Molded plastic over glass passivated junction
Terminal: Solderable per MIL-STD-750, Method 2026
Standard Packaging: 16mm tape (EIA STD RS-481)
Weight: 0.008398~0.008603 ounce, 0.238091~0.243883 gram
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25℃ ambient temperature unless otherwise specified.
RATING | SYMBOL | VALUE | UNITS |
---|---|---|---|

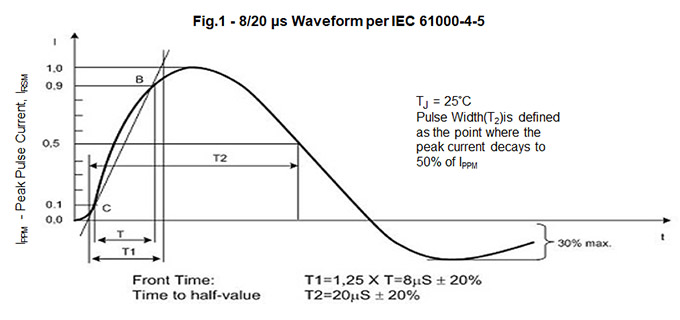

Peak Current Rating per 8/20 μs IEC 61000-4-5 (Fig 1) | IPPM | 1500 | Amps |
Operating junction and Storage Temperature Range (Fig 2) | TJ , TSTG | -55 to +150 | ℃ |

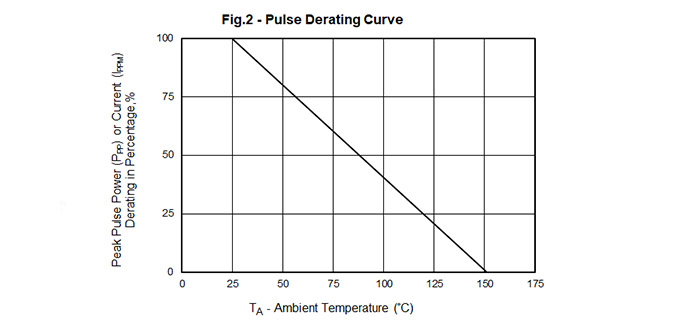

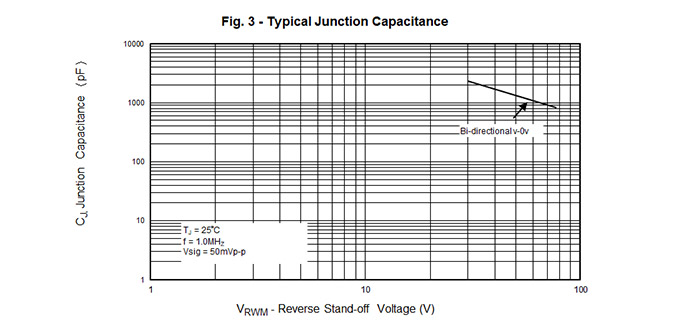

Note:Non-repetitive current pulse, per Fig. 1 and derated above TA = 25℃ per Fig. 2 .

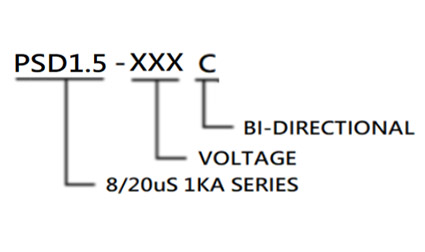

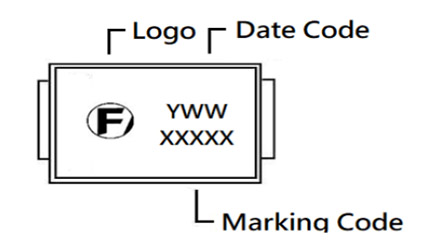

PART NUMBER | DEVICE MARKING CODE | REVERSE STAND- OFF VOLTAGE VRWM(V) | BREAKDOWN VOLTAGE VBR(V) @IT | TEST CURRENT IT (mA) | REVERSE LEAKAGE @ VRWM IR (μA) | PEAK PULSE CURRENT (1) @Ipp(A) (8/20μs per IEC 61000-4-5) | MAXIMUN CLAMPING VOLTAGE @ 8/20 μs | |
---|---|---|---|---|---|---|---|---|
MIN | MAX | |||||||
PSD1.5-030C | 1.5K30C | 30.0 | 33.30 | 36.80 | 1 | 1 | 1500 | 39.0 |
PSD1.5-033C | 1.5K33C | 33.0 | 36.70 | 40.60 | 1 | 1 | 1500 | 42.9 |
PSD1.5-036C | 1.5K36C | 36.0 | 40.00 | 44.20 | 1 | 1 | 1500 | 46.8 |
PSD1.5-040C | 1.5K40C | 40.0 | 44.40 | 49.10 | 1 | 1 | 1500 | 52.0 |
PSD1.5-043C | 1.5K43C | 43.0 | 47.80 | 52.80 | 1 | 1 | 1500 | 55.9 |
PSD1.5-045C | 1.5K45C | 45.0 | 50.00 | 55.30 | 1 | 1 | 1500 | 58.5 |
PSD1.5-048C | 1.5K48C | 48.0 | 53.30 | 58.90 | 1 | 1 | 1500 | 62.4 |
PSD1.5-051C | 1.5K51C | 51.0 | 56.70 | 62.70 | 1 | 1 | 1500 | 66.3 |
PSD1.5-054C | 1.5K54C | 54.0 | 60.00 | 66.30 | 1 | 1 | 1500 | 70.2 |
PSD1.5-058C | 1.5K58C | 58.0 | 64.40 | 71.20 | 1 | 1 | 1500 | 75.4 |
PSD1.5-060C | 1.5K60C | 60.0 | 66.70 | 73.70 | 1 | 1 | 1500 | 78.0 |
PSD1.5-064C | 1.5K64C | 64.0 | 71.10 | 78.60 | 1 | 1 | 1500 | 83.2 |
PSD1.5-066C | 1.5K66C | 66.0 | 72.00 | 80.00 | 1 | 1 | 1500 | 85.8 |
PSD1.5-070C | 1.5K70C | 70.0 | 77.80 | 86.00 | 1 | 1 | 1500 | 91.0 |
PSD1.5-076C | 1.5K76C | 76.0 | 85.00 | 95.00 | 1 | 1 | 1500 | 98.8 |
• Note:
1. VC measured at the time coincident with the peak surge current
1. VC measured at the time coincident with the peak surge current
