產品名稱 : SD8S SERIES
產品描述

GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
STAND-OFF VOLTAGE - 16 TO 43 Volts

詢價

FEATURES

  • Halogen-Free
  • RoHS compliant
  • Glass Passivated Junction technology
  • TJ = 175 °C capability suitable for high reliability
  • Both available in uni and bi-polar directional polarity
  • Low leakage current
  • Low forward voltage drop for uni-directional polarity
  • High surge capability
  • Meets ISO7637-2 & ISO16750-2 surge specification (varied by test condition)
  • AEC-Q101 qualified

TYPICAL APPLICATIONS

Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application.

MECHANICAL DATA

Case: DO-218.Molded plastic over glass passivated junction
Molding compound meets UL 94 V-0 flammability rating

Polarity: Heatsink is anode

Terminal: Solderable per MIL-STD-750, Method 2026

Mounting Position: Any

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25℃ ambient temperature unless otherwise specified.
RATINGSYMBOLVALUEUNITS
Peak Pulse Power Dissipation on 10/1000μs waveform (Note 1) PPPM 6600 Watts
Peak Pulse Power Dissipation on 10/10000μs waveform (Note 1) PPPM 5200 Watts
Peak Pulse Current of on 10/1000μs waveform IPPM SEE TABLE 1 Amps

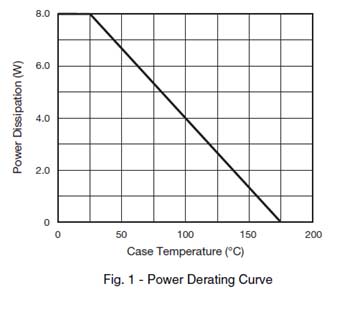

Power dissipation on infinite heatsink at TC = 25 °C (fig. 1) PM (AV) 8 Watts
Peak Forward Surge Current,8.3ms Single Half Sine-Wave Superimposed on Rated Load,(JEDEC Method) IFSM 700 Amps
Operating junction and Storage Temperature Range TJ , TSTG -55 to + 175 °C
Note (1) Non-repetitive current pulse derated above TA = 25 °C
6.6KW
PART NUMBER		REVERSE STAND- OFF VOLTAGE VRWM(V)BREAKDOWN VOLTAGE VBR(V) @ITTEST CURRENT IT (mA)MAXIMUN CLAMPING VOLTAGE @IPP VC (V)PEAK PULSE CURRENT AT 10/1000 μs Ipp (A)REVERSE LEAKAGE @ VRWM IR(μA)
UNI-POLARBI-POLARMINMAX
SD8S16A SD8S16CA 16.0 17.80 19.70 5 26.0 254.0 10
SD8S17A SD8S17CA 17.0 18.90 20.90 5 27.6 239.0 10
SD8S18A SD8S18CA 18.0 20.00 22.10 5 29.2 226.0 10
SD8S20A SD8S20CA 20.0 22.20 24.50 5 32.4 204.0 10
SD8S22A SD8S22CA 22.0 24.40 26.90 5 35.5 186.0 10
SD8S24A SD8S24CA 24.0 26.70 29.50 5 38.9 170.0 10
SD8S26A SD8S26CA 26.0 28.90 31.90 5 42.1 157.0 10
SD8S28A SD8S28CA 28.0 31.10 34.40 5 45.4 145.0 10
SD8S30A SD8S30CA 30.0 33.30 36.80 5 48.4 136.0 10
SD8S33A SD8S33CA 33.0 36.70 40.6 5 53.3 124.0 10
SD8S36A SD8S36CA 36.0 40.00 44.2 5 58.1 114.0 10
SD8S40A SD8S40CA 40.0 44.40 49.1 5 64.5 102.0 10
SD8S43A SD8S43CA 43.0 47.80 52.8 5 69.4 95.0 10
Note• For uni-directional part, the maximum VF = 1.8 V at IF = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum

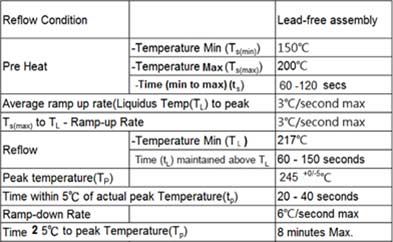

Soldering Parameters

Note：Number of reflow cycles allowed 3 times

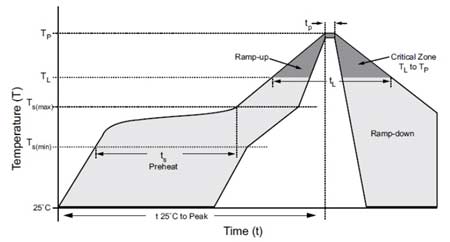

Soldering Profile

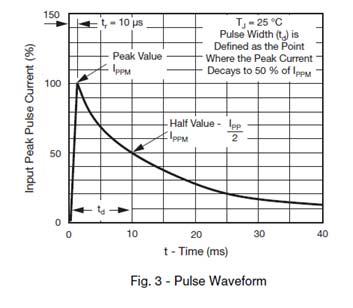

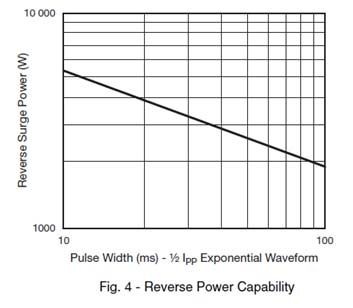

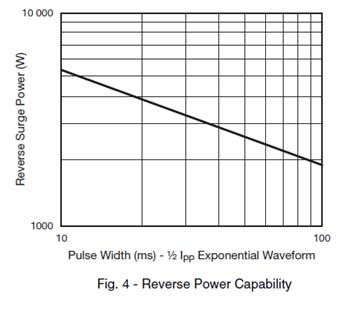

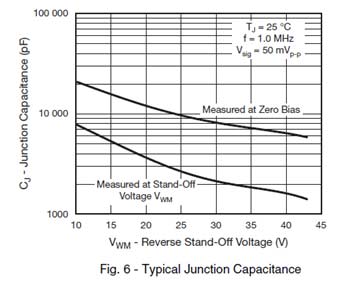

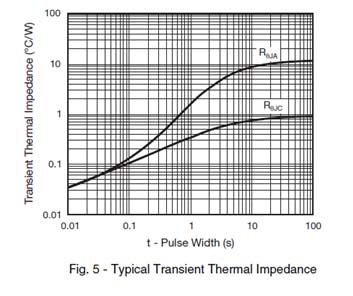

RATINGS AND CHARACTERISTIC CURVES

Ratings and Characteristic Curves(T A=25℃ unless otherwise noted)

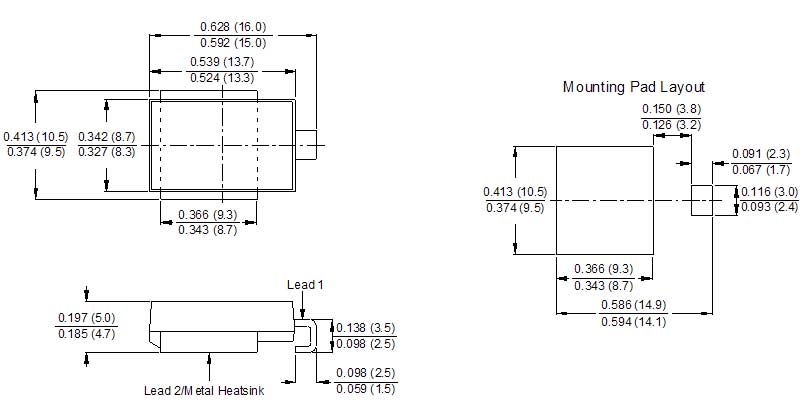

PACKAGE OUTLINE DIMENSIONS in inches (millimeters)

GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Part Numbering System
Part Marking System

Packaging

Part numberComponent PackageQuantityPackaging OptionPackaging Specification
SD8SXXX DO-218 750 Tape & Reel - 24mm/13" tape EIA STD RS-481
