產品名稱 : SACB SERIES
產品描述

LOW CAPACITANCE TRANSIENT VOLTAGE SUPPRESSOR
STAND-OFF VOLTAGE5.0 - 50 Volts
500 watt Peak Pulse Power

詢價

FEATURES

  • Halogen-Free
  • RoHS compliant
  • Typical maximum temperature coefficient ΔVBR=0.1%xVBR@25 ºCxΔT
  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O
  • Glass passivated junction
  • 500W Peak Pulse Power capability with a 10/1000us waveform,repetition rate (duty cycle): 0.01%
  • Excellent clamping capability
  • Low incremental surge resistance
  • Fast response time: typically less than 1.0ps from 0 Volts to V(BR)
  • Ideal for data line applications
  • High temperature soldering: 260°C/40 seconds at terminals
  • Matte Tin Lead-free plated

MECHANICAL DATA

Case: JEDEC DO214AB. Molded plastic over glass passivated junction

Terminal: Solderable per MIL-STD-750, Method 2026

Polarity: The band denotes TVS cathode

Standard Packaging: 12mm tape (EIA STD RS-481)

Weight: 0.003 ounce, 0.093 gram

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25℃ ambient temperature unless otherwise specified.
RATINGSYMBOLVALUEUNITS
Peak Pulse Power Dissipation on 10/1000μs waveform (Note 1 ,FIG.1) PPPM Minimum 500 Watts

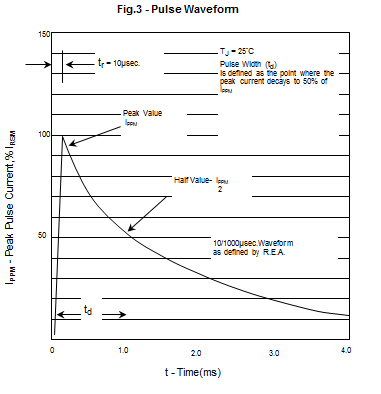

Peak Pulse Power Dissipation on 10/10000μs waveform (Note 1,FIG.3) PPPM SEE TABLE 1 Amps

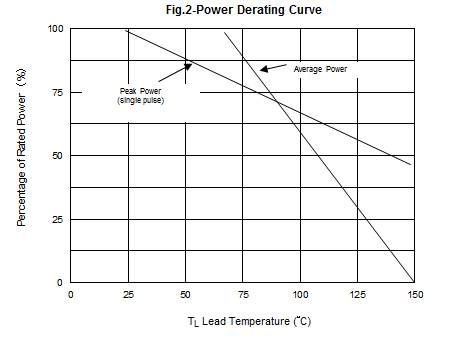

Power Dissipation on infinite heat sink at TL = 50℃  PM(AV) 3 Watts
Operating junction and Storage Temperature Range TJ , TSTG -55 to + 150 °C
Note:
Non-repetitive current pulse , per Fig. 3 and derated above TA = 25℃  per Fig. 2 .
SACB
 PART
NUMBER		Marking
Code		STAND-OFF VOLTAGE
(NOTE1) VWM (VOLTS)		MINIMUM
BREAKDOWN
VOLTAGE
AT IT=1.0mA V(BR)
(VOLTS)		MAXIMUM
REVERSE
LEAKAGE
AT VWM
IR(uA)		MAXIMUM CLAMPING VOLTAGE
AT Ipp=5.0A
VC (V)		MAXIMUM PEAK
PULSE CURRENT PER FIG.3
Ipp (AMPS)		MAXIMUM JUNCTION
CAPACITANCE
AT 0 VOLTS
(pF)		WORKING INVERSE
BLOCKING VOLTAGE VWIB
(VOLTS)		INVERSE BLOCKING
LEAKAGE CURRENT VWIB
IIB(mA)		PEAK INVERSE
BLOCKING VOLTAGE VPIB
(VOLTS)
SACB5.0 SKE 5.0 7.6 300 10.0 44.0 45 75 1.0 100
SACB6.0 SKG 6.0 7.9 300 11.2 41.0 45 75 1.0 100
SACB7.0 SKM 7.0 8.3 300 12.6 38.0 45 75 1.0 100
SACB8.0 SKR 8.0 8.9 100 13.4 36.0 45 75 1.0 100
SACB8.5 SKT 8.5 9.44 50 14.0 34.0 45 75 1.0 100
SACB10 SKX 10.0 11.10 5 16.3 29.0 45 75 1.0 100
SACB12 SLE 12.0 13.30 5 19.0 25.0 45 75 1.0 100
SACB15 SLM 15.0 16.70 5 23.6 20.0 45 75 1.0 100
SACB18 SLT 18.0 20.00 5 28.8 15.0 45 75 1.0 100
SACB22 SLX 22.0 24.40 5 35.4 14.0 45 75 1.0 100
SACB26 SME 26.0 28.90 5 42.3 11.1 45 75 1.0 100
SACB30 SMK 30.0 33.30 5 48.6 10.0 45 75 1.0 100
SACB36 SMP 36.0 40.00 5 60.0 8.6 45 75 1.0 100
SACB45 SMV 45.0 50.00 5 77.0 6.8 45 150 1.0 200
SACB50 SMZ 50.0 55.50 5 88.0 5.8 45 150 1.0 200

LOW CAPACITANCE TRANSIENT VOLTAGE SUPPRESSORS

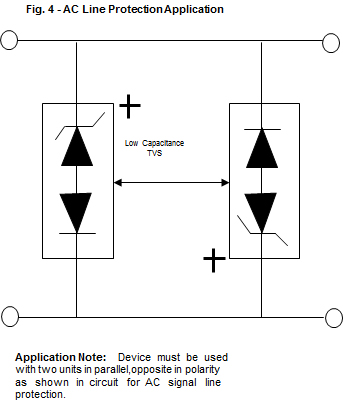

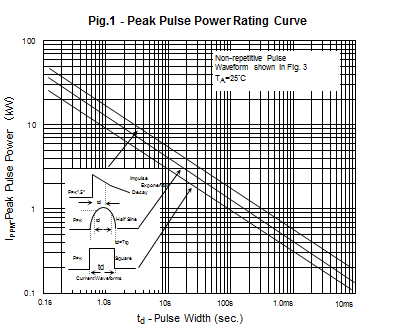

Ratings and Characteristic Curves(TA=25℃ unless otherwise noted)

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Part Numbering System
Part Marking System

Packaging

Part numberComponent PackageQuantityPackaging OptionPackaging Specification
SACBxxxXX DO-214AA 3000 Tape & Reel - 16mm/13" tape EIA STD RS-481
SACBxxxXX DO-214AA 500 Tape & Reel - 16mm/7" tape EIA STD RS-481
