產品名稱 : P6SMB SERIES
產品描述

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE - 6.8 TO 600 Volts
600 Watt Peak Pulse Power

FEATURES

  • Halogen-Free
  • RoHS compliant
  • Typical maximum temperature coefficient ΔVBR=0.1%xVBR@25 ºCxΔT
  • For surface mounted applications in order to optimize board space
  • Low profile package
  • Built-in strain relief
  • Glass passivated junction
  • Low inductance
  • Excellent clamping capability
  • Repetition Rate (duty cycle):0.01%
  • Fast response time: typically less than 1.0ps from 0 Volts to BV for unidirectional types
  • Typical IR less than 1μA above 12V.
  • IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
  • High temperature soldering: 260°C/40 seconds at terminals
  • Matte Tin Lead-free plated

MECHANICAL DATA

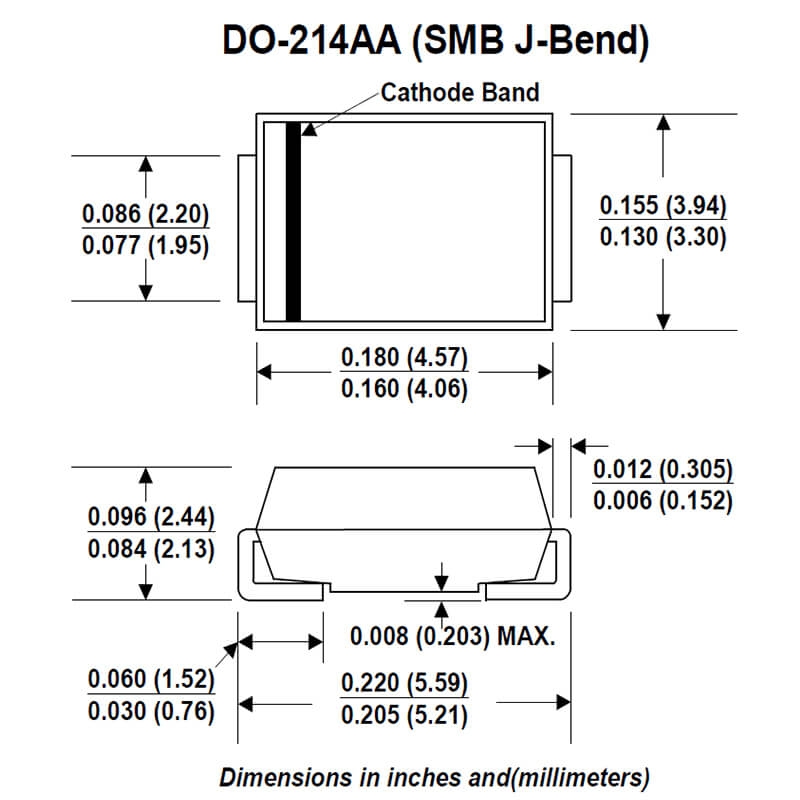

Case: JEDEC DO214AA. Molded plastic over glass passivated junction

Terminal: Solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes positive end (cathode) except Bidirectional

Standard Packaging: 12mm tape (EIA STD RS-481)

Weight: 0.003 ounce, 0.093 gram

DEVICES FOR BIPOLAR APPLICATION

For Bidirectional use Suffix CA for types P6SMB6.8CA thru types P6SMB550CA
Electrical characteristics apply in both directions

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25℃ ambient temperature unless otherwise specified.
RATINGSYMBOLVALUEUNITS

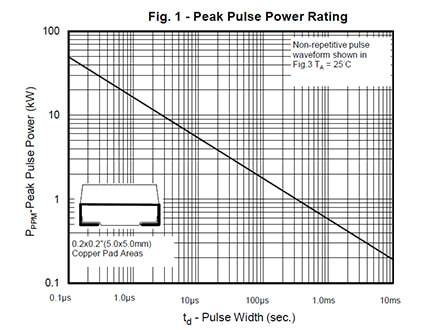

Peak Pulse Power Dissipation on 10/1000μs waveform (Note 1 ,FIG.1) PPPM Minimum 600 Watts

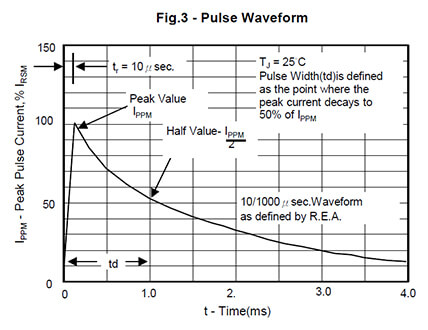

Peak Pulse Current of on 10/1000μs waveform (Note 1,FIG.3) IPPM SEE TABLE 1 Amps

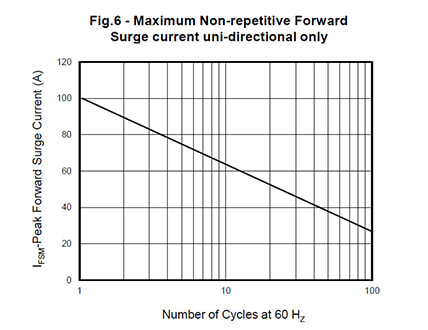

Peak Forward Surge Current,8.3ms Single Half Sine-Wave Superimposed on Rated Load,(JEDEC Method) (Note 3) IFSM 100 Amps
Operating junction and Storage Temperature Range TJ , TSTG -55 to + 150 °C
Note:

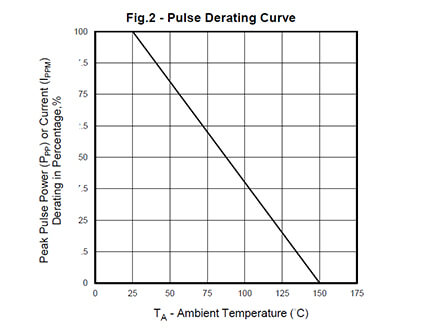

(1) Non-repetitive current pulse , per Fig. 3 and derated above TA = 25 °C per Fig. 2 .
(2) Mounted on 5.0mm x 5.0mm(0.03mm thick) Copper Pads to each terminal
(3)8.3ms single half sine-wave , or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.
P6SMB PART NUMBERDEVICE MARKING CODE REVERSE STAND-OFF VOLTAGE VRWM(V) BREAKDOWN
VOLTAGE
VBR(V) @IT
TEST CURRENT IT (mA) MAXIMUN CLAMPING VOLTAGE @Ipp Vc(V)
(10/1000uS)
PEAK
PULSE
CURRENT
Ipp (A)
(10/1000uS)
MAXIMUM CLAMPING VOLTAGE @Ipp Vc(V)
(8/20uS)
PEAK PULSE CURRENT Ipp (A)
(8/20uS)
REVERSE LEAKAGE @ VRWM IR(μA)
UNI- POLARBI-POLARUNIBIMINMAX
P6SMB 6.8A P6SMB 6.8CA 6V8A 6V8C 5.8 6.45 7.14 10 10.5 58.10 13.7 290.5 1000.0
P6SMB 7.5A P6SMB 7.5CA 7V5A 7V5C 6.4 7.13 7.88 10 11.3 54.00 14.7 270.0 500.0
P6SMB 8.2A P6SMB 8.2CA 8V2A 8V2C 7.1 7.79 8.61 10 12.1 50.40 15.7 252.0 200.0
P6SMB 9.1A P6SMB 9.1CA 9V1A 9V1C 7.8 8.65 9.55 1 13.4 45.50 17.4 227.5 50.0
P6SMB 10A P6SMB 10CA 10A 10C 8.6 9.50 10.50 1 14.5 42.10 18.9 210.5 10.0
P6SMB 11A P6SMB 11CA 11A 11C 9.4 10.50 11.60 1 15.6 39.10 20.3 195.5 5.0
P6SMB 12A P6SMB 12CA 12A 12C 10.2 11.40 12.60 1 16.7 36.50 21.7 182.5 5.0
P6SMB 13A P6SMB 13CA 13A 13C 11.1 12.40 13.70 1 18.2 33.50 23.7 167.5 1.0
P6SMB 15A P6SMB 15CA 15A 15C 12.8 14.30 15.80 1 21.2 28.80 27.6 144.0 1.0
P6SMB 16A P6SMB 16CA 16A 16C 13.6 15.20 16.80 1 22.5 27.10 29.3 135.5 1.0
P6SMB 18A P6SMB 18CA 18A 18C 15.3 17.10 18.90 1 25.5 24.20 33.2 121.0 1.0
P6SMB 20A P6SMB 20CA 20A 20C 17.1 19.00 21.00 1 27.7 22.00 36.0 110.0 1.0
P6SMB 22A P6SMB 22CA 22A 22C 18.8 20.90 23.10 1 30.6 19.90 39.8 99.5 1.0
P6SMB 24A P6SMB 24CA 24A 24C 20.5 22.80 25.20 1 33.2 18.40 43.2 92.0 1.0
P6SMB 27A P6SMB 27CA 27A 27C 23.1 25.70 28.40 1 37.5 16.30 48.8 81.5 1.0
P6SMB 30A P6SMB 30CA 30A 30C 25.6 28.50 31.50 1 41.4 14.70 53.8 73.5 1.0
P6SMB 33A P6SMB 33CA 33A 33C 28.2 31.40 34.70 1 45.7 13.30 59.4 66.5 1.0
P6SMB 36A P6SMB 36CA 36A 36C 30.8 34.20 37.80 1 49.9 12.20 64.9 61.0 1.0
P6SMB 39A P6SMB 39CA 39A 39C 33.3 37.10 41.00 1 53.9 11.30 70.1 56.5 1.0
P6SMB 43A P6SMB 43CA 43A 43C 36.8 40.90 45.20 1 59.3 10.30 77.1 51.5 1.0
P6SMB 47A P6SMB 47CA 47A 47C 40.2 44.70 49.40 1 64.8 9.40 84.2 47.0 1.0
P6SMB 51A P6SMB 51CA 51A 51C 43.6 48.50 53.60 1 70.1 8.70 91.1 43.5 1.0
P6SMB 56A P6SMB 56CA 56A 56C 47.8 53.20 58.80 1 77.0 7.90 100.1 39.5 1.0
P6SMB 62A P6SMB 62CA 62A 62C 53.0 58.90 65.10 1 85.0 7.20 110.5 36.0 1.0
P6SMB 68A P6SMB 68CA 68A 68C 58.1 64.60 71.40 1 92.0 6.60 119.6 33.0 1.0
P6SMB 75A P6SMB 75CA 75A 75C 64.1 71.30 78.80 1 103.0 5.90 133.9 29.5 1.0
P6SMB 82A P6SMB 82CA 82A 82C 70.1 77.90 86.10 1 113.0 5.40 146.9 27.0 1.0
P6SMB 91A P6SMB 91CA 91A 91C 77.8 86.50 95.50 1 125.0 4.90 162.5 24.5 1.0
P6SMB 100A P6SMB 100CA 100A 100C 85.5 95.00 105.00 1 137.0 4.50 178.1 22.5 1.0
P6SMB 110A P6SMB 110CA 110A 110C 94.0 105.00 116.00 1 152.0 4.00 197.6 20.0 1.0
P6SMB 120A P6SMB 120CA 120A 120C 102.0 114.00 126.00 1 165.0 3.70 214.5 18.5 1.0
P6SMB 130A P6SMB 130CA 130A 130C 111.0 124.00 137.00 1 179.0 3.40 232.7 17.0 1.0
P6SMB 150A P6SMB 150CA 150A 150C 128.0 143.00 158.00 1 207.0 2.90 269.1 14.5 1.0
P6SMB 160A P6SMB 160CA 160A 160C 136.0 152.00 168.00 1 219.0 2.80 284.7 14.0 1.0
P6SMB 170A P6SMB 170CA 170A 170C 145.0 162.00 179.00 1 234.0 2.60 304.2 13.0 1.0
P6SMB 180A P6SMB 180CA 180A 180C 154.0 171.00 189.00 1 246.0 2.50 319.8 12.5 1.0
P6SMB 200A P6SMB 200CA 200A 200C 171.0 190.00 210.00 1 274.0 2.20 356.2 11.0 1.0
P6SMB 220A P6SMB 220CA 220A 220C 185.0 209.00 231.00 1 328.0 1.90 426.4 9.5 1.0
P6SMB 250A P6SMB 250CA 250A 250C 214.0 237.00 263.00 1 344.0 1.80 447.2 9.0 1.0
P6SMB 300A P6SMB 300CA 300A 300C 256.0 285.00 315.00 1 414.0 1.50 538.2 7.5 1.0
P6SMB 350A P6SMB 350CA 350A 350C 300.0 332.00 368.00 1 482.0 1.30 626.6 6.5 1.0
P6SMB 400A P6SMB 400CA 400A 400C 342.0 380.00 420.00 1 548.0 1.10 712.4 5.5 1.0
P6SMB 440A P6SMB 440CA 440A 440C 376.0 418.00 462.00 1 602.0 1.00 782.6 5.0 1.0
P6SMB 480A P6SMB 480CA 480A 480C 408.0 456.00 504.00 1 658.0 0.92 855.4 4.6 1.0
P6SMB 510A P6SMB 510CA 510A 510C 434.0 485.00 535.00 1 698.0 0.90 907.4 4.5 1.0
P6SMB 530A P6SMB 530CA 530A 530C 477.0 503.50 556.50 1 725.0 0.83 942.5 4.2 1.0
P6SMB 540A P6SMB 540CA 540A 540C 486.0 513.00 567.00 1 740.0 0.82 962.0 4.1 1.0
P6SMB 550A P6SMB 550CA 550A 550C 495.0 522.50 577.50 1 760.0 0.80 988.0 4.0 1.0
•For bidirectional type having Vrwm of 10 volts and less, the IR limit is double.

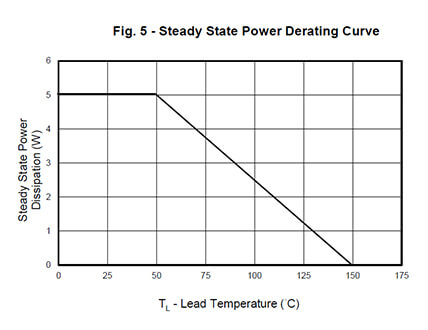

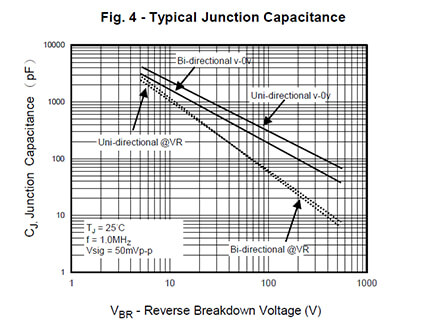

RATINGS AND CHARACTERISTIC CURVES

Ratings and Characteristic Curves(TA=25℃ unless otherwise noted)

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

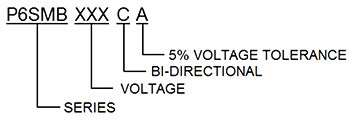

Part Numbering System
Part Marking System

Packaging

Part numberComponent PackageQuantityPackaging OptionPackaging Specification
P6SMBxxxXX DO-214AA 3000 Tape & Reel - 12mm/13" tape EIA STD RS-481
P6SMBxxxXX DO-214AA 500 Tape & Reel - 12mm/ 7" tape EIA STD RS-481
